TRD-N100-RZW encoder

TRD-N100-RZW encoder
TRD-N100-RZW encoder
TRD-N100-RZW encoder
TRD-N100-RZW encoder
TRD-N100-RZW encoder
TRD-N100-RZW KOYO encoderSmall thin, incremental rotary encoderPerformance features:Thickness of 35m... Read More
$191.00
Ex Tax: $191.00
  • Stock: In Stock
  • Model: TRD-N100-RZW
  • Weight: 0.15kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: TRD-N100-RZW

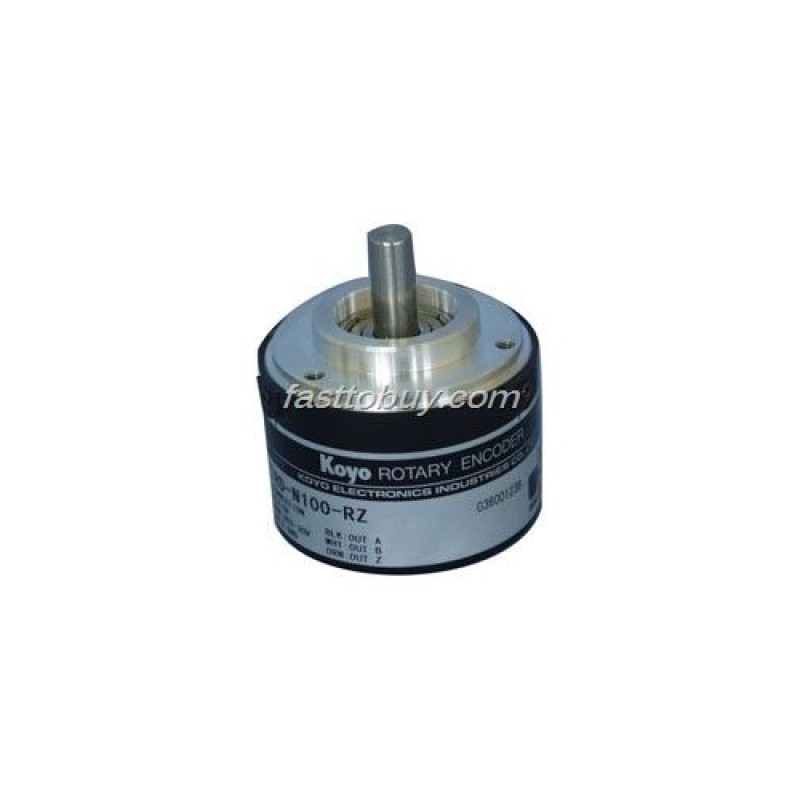

TRD-N100-RZW KOYO encoder

Small thin, incremental rotary encoder
Performance features:
Thickness of 35mm slim design
Applicable to a variety of environmental protection structures
Solid φ8mm spindle
Wide voltage range
Extend the cable Enhanced
Push-pull output


Performance Specifications?

Project

TRD-N (solid shaft) / TRD-NH (hollow shaft)

Exterior

φ50×35mm

Solid shaft Shaft Diameter: φ8mm

Hollow shaft Shaft Diameter: φ8mm

Resolution

Maximum resolution is 5000

Output signal form

A · B two-phase + Z phase

The highest corresponding frequencies

100kHz

The maximum allowable speed

5000rpm

Supply voltage

DC 4.75V ~ 30V

Output Type

Push-pull output

Partial load short-circuit protection circuit

Load

Radial: 50N

Axial: 30N

Starting torque

Dust: ≤ 0.003N · m

Dust drip: ≤ 0.02 N · m

Degree of protection

Dust-proof: IP50

Dust-proof, anti-drip type: IP65

The use of ambient temperature

- 10 ~ +70 ° C
