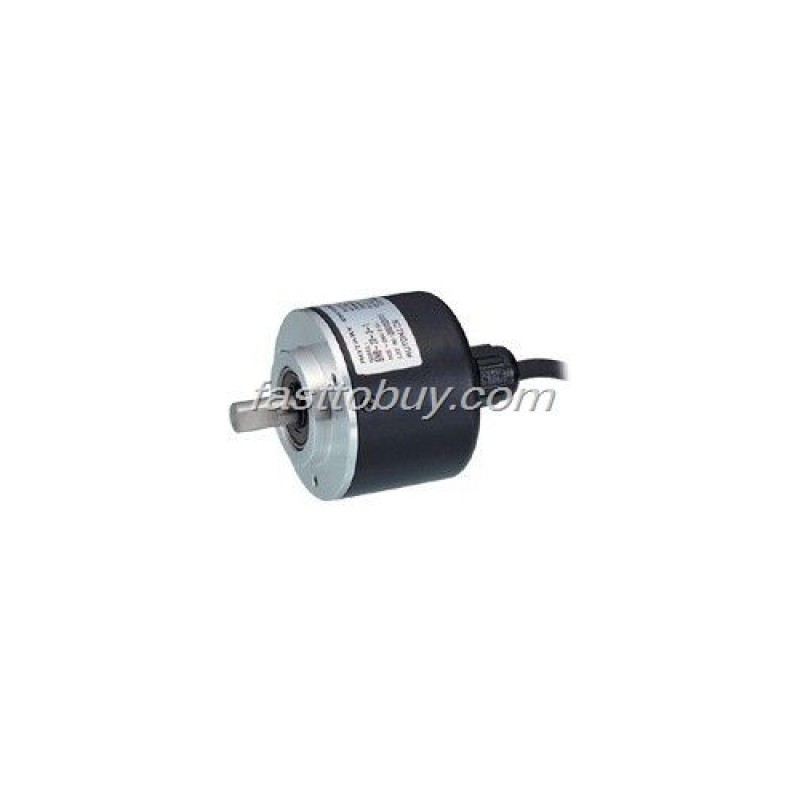

AUTONICS Encoder E50S8-20-6-L-5



Features?

Suit for Angle, Position, Revolution, Speed, Acceleration, distance detection. Power source : 5VDC, 12-24VDC  ±5% Reasonable price



Specifications:

Item			Diameter ø50mm shaft type Incremental Rotary encoder
Resolution(P/R)			*1? *2?* 5?10?*12? 1 5?20? 2 3?25? 30? 35? 40? 45? 50? 60? 75?100?120? 1 50? 1 92?200? 2 40? 250? 2 56? 300? 360? 400? 500? 512? 600? 800?1000? 102 4?1200? 1 500? 1 800?2000? 20 48? 2500? 3000? 3600? 5000 (Not indicated type is available to customize)( Note1)
wlectrical specification	Output phase		A? B? Z phase(Line driver : A? A? B? B? Z? Z phase)
	Phase difference of output		Output between A and B phase : T/4?T/8: (T?1cycle of A phase)
	Control output	Totem pole output	•Low Load current : Max.20mA? Residual voltage : Max.0.5VDC •High Load current : Max. -20mA? Output voltage : Min.(Power supply-1.5)VDC
		NPN open collector output	Load current : Max. 30mA? Residual voltage : Max.0.4VDC
		Voltage output	Load current : Max.10mA? Residual voltage : Max.0.4VDC
		Line driver output	Low Load current : Max .20mA? Residual : Max.0.5VHigh Load current : Max . -20mA? Output voltage : Min.2.5V
	Response time (Rise/ Fall)	Totem pole output	Max.1μs	•Measuring condition Cable length : 2m?Isink= Max .20mA
		NPN open collector output	Max.1μs
		Voltage output	Max.1μs
		Line driver output	Max.0.5μs
	Max Response frequency		180kHz
	Current consumption		Max. 60mA(disconnection of the load)? Line driver output:Max. 50mA(disconnection of the load)
	Insulation resistance		Min. 100MΩ(at 500VDC)
	Dielectric strength		750VAC 50/60Hz for 1 minute(Between all terminals and case)
	Connection		Cable outgoing type? 200 mm cable outgoing connector type
Mechanicalspecification	Starting torque		(Note2) Max. 70gf.cm(0.007N.m)
	Moment of inertia		Max. 80g.cm2(8X10-6kg.m2)
	Shaft loading		Radial : Max.10kgf? Thrust : Max.2.5kgf
	Deviation of shaft position		Radial : Max. 0.1mm? Thrust : Max. 0.2mm
	Max allowable revolution		(Note3)5000rpm
Vibration			1.5mm amplitude at frequency of 10 -55Hz in each of X? Y? Z directions for 2 hours
Shock			Max. 75G
Ambient temperature			-10 -70?(at non-freezing status)? Storage:-25 -85'?
Ambient humidity			35-85%RH? Storage: 35-90%RH
Protection			IP50(IEC specification)
Cable			5P?5mm? Length : 2m? Shield cable(Line driver output : 8P? 5mm )
Accessory			8mm coupling bracket
Weight			Approx.275g
Approval			(Except Line driver output)
